Narrow-Stile 1-1/8" Hook Bolt Lock Body - w/ 2 Faceplates

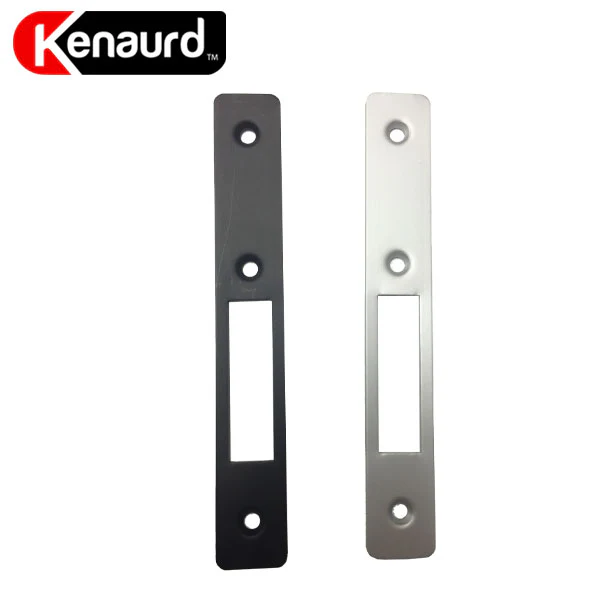

This Premium Narrow-Stile Hook Bolt Lock Body offers a flexible solution for traffic control. The Lock Body includes 2 faceplates in Oil Rubbed Bronze and Aluminum Finish. Fits standard 1" to 1-1/8" Mortise cylinders.
| Backset | 1-1/8" [28.6 mm] |
| Handing | Easy adjustable to LH ro RH applications |
| Case | Zinc Plated Steel lock body |
| Case Dimensions: | 7/8" width x 6" Length |
| Cylinder: | Accepts standard 1" to 1-1/8" Mortise Thumbturns and 1" to 1-1/8" Mortise Lock Cylinders with Adams Rite (A/R) cams. (Cylinder Not Included) |
| Hook Bolt |
Width - 5/8", Length - 1-3/8", Throw - 15/16” |
| Faceplate | Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. |
| Strike | Standard strike furnished for flat jamb where door closes flush or nearly flush. |
| Standard Package |
Individually boxed with strike plate, 2 faceplates, and mounting screws. Available in 25 Count Carton / Box Cylinders, paddles, handles available separately. |
Original: $10.95
-70%$10.95
$3.28Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This Premium Narrow-Stile Hook Bolt Lock Body offers a flexible solution for traffic control. The Lock Body includes 2 faceplates in Oil Rubbed Bronze and Aluminum Finish. Fits standard 1" to 1-1/8" Mortise cylinders.
| Backset | 1-1/8" [28.6 mm] |
| Handing | Easy adjustable to LH ro RH applications |
| Case | Zinc Plated Steel lock body |
| Case Dimensions: | 7/8" width x 6" Length |
| Cylinder: | Accepts standard 1" to 1-1/8" Mortise Thumbturns and 1" to 1-1/8" Mortise Lock Cylinders with Adams Rite (A/R) cams. (Cylinder Not Included) |
| Hook Bolt |
Width - 5/8", Length - 1-3/8", Throw - 15/16” |
| Faceplate | Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. |
| Strike | Standard strike furnished for flat jamb where door closes flush or nearly flush. |
| Standard Package |
Individually boxed with strike plate, 2 faceplates, and mounting screws. Available in 25 Count Carton / Box Cylinders, paddles, handles available separately. |
